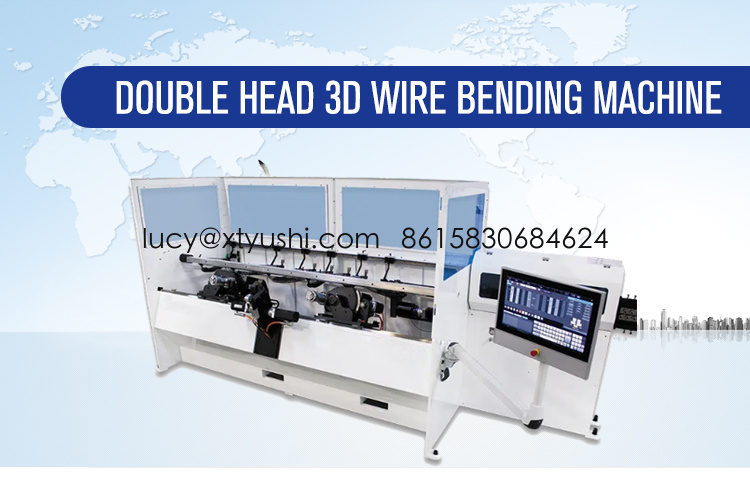

Double head 3D CNC automatic wire bending machine

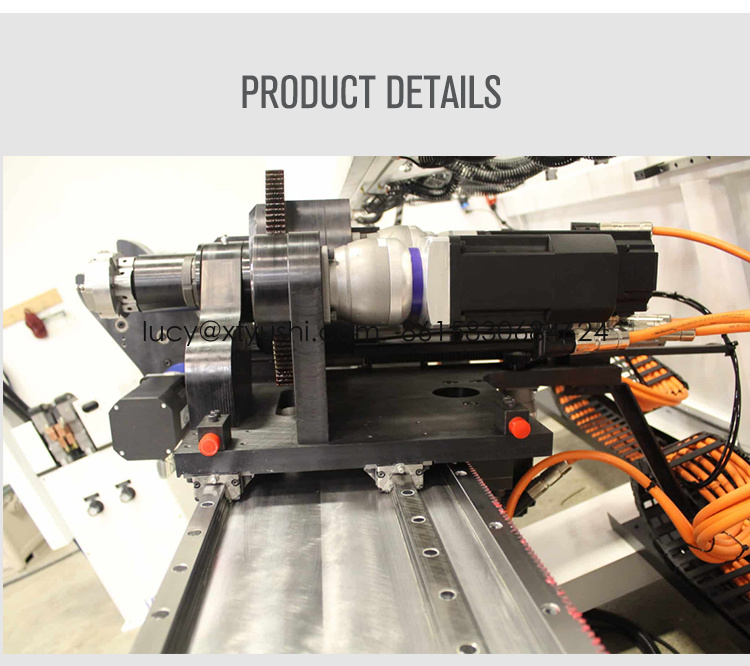

.The 3d double head wire bending machine head is of an integral box type structure, and the bending arm adopts precision gears. Both ends of the transmission wheel and the output shaft of the reducer are equipped with support bearings to ensure its reliability and bending accuracy.
  • Commodity name： Double head 3D CNC automatic wire bending machine

Category:

3D wire bending machine

Email:

Lucy@xtyushi.com

Phone:

8615830684624

Get Quote
Also Like
  • Description

  • Double head 3D CNC automatic wire bending machine

    Features:
    1.It is for steel/stainless/ wire diameter from 3.0mm to 8.0mm.
    2.With 5 axis 3D wire bending function, the option of chamfering, end forming, double head bending as your choice.
    3.With remote function, PAD / Mobile phone / PC monitoring production by camera.
    4.Auto uncoil, straighten, feeding, bending, cutting multi-function 3D CNC Steel Wire Bending Machine.
    5.High precision;High efficiency:High durability;Full automatic;Easy to operate;Multiple applicable fields.


    Double head 3D CNC automatic wire bending machine Technical parameters

    Power 380V Three-phase five-wire Feeding wire accuracy +-0.1mm

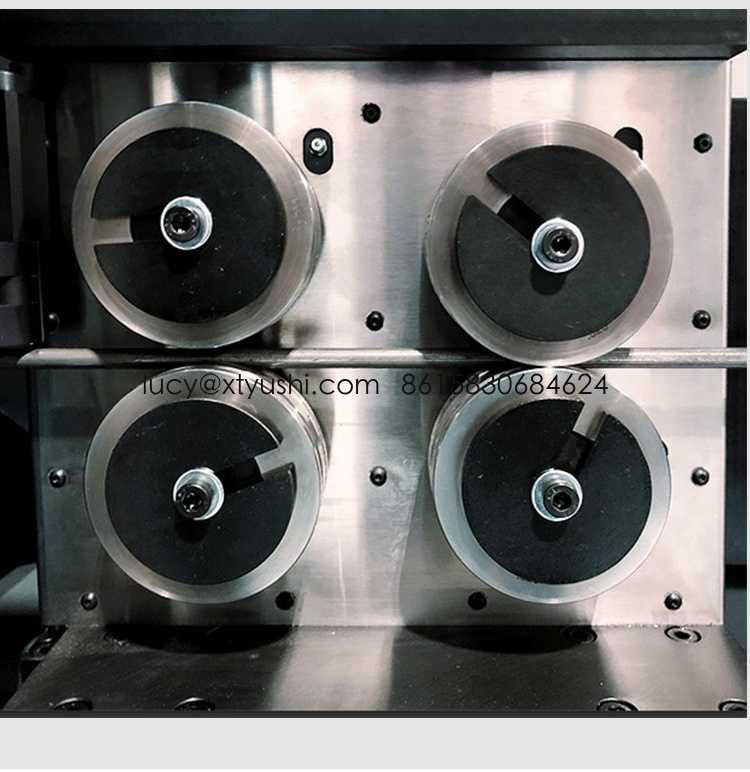

    number of feeder wheel 3pairs*2 max wire feeding speed 90m/min
    Max iron wire diameter 8mm dimension 4630*1200*1650mm
    Wire diameter (iron wire) 3-8mm weight 4800kg

    The package and shipping

    Double head 3D CNC automatic wire bending machine

    Packing: In standard export wooden case for wire bending Machine Delivery time:within 15 days after receiving your
    advanced payment. Payment terms:. 30%T/T in advanced payment,the left payment should be paid after we finish our production.( we will take machine and packing photos for your checking ) We have our own forwarder. We can check the delivery information timely.

    You can also use forwarder by yours. We will contact with him ASAP..

    FAQ


    1.If buyers visit our factory and check the Double head 3D CNC automatic wire bending machine we will teach you how to install and use the machine,and also train your workers/technician face to face.

    2.Without visiting, we will send you user manual and video to teach you to install and operate.

    3.If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
