Z28-360 hot selling automatic thread rolling machine

1 surface roughness less than turning,milling and grinding; 2. Processed products than two-axis rolling machine products processed verticality,concentricity,etc. better,higher precision; 3. Material utilization is high;productivity is doubled from cutting,and it is easy to automate;

Commodity name： Z28-360 hot selling automatic thread rolling machine

Category:

Two-axis thread rolling machine

Email:

Phone:

Description

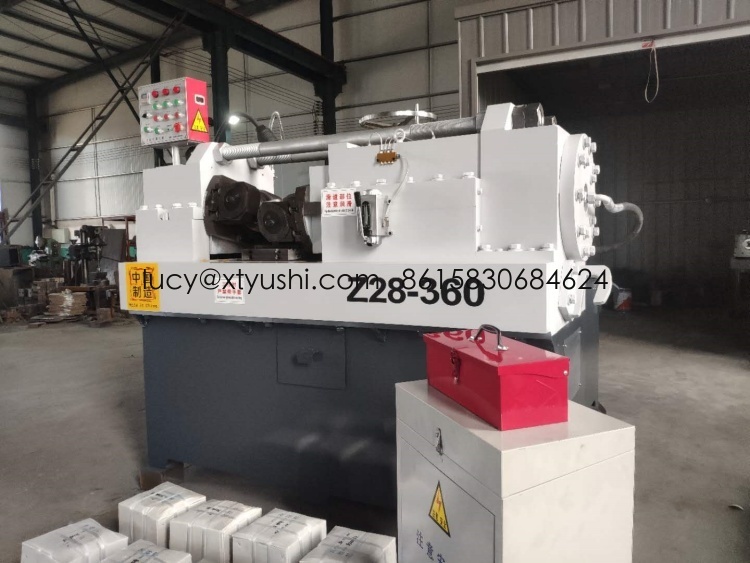

Z28-360 hot selling automatic thread rolling machine

The 2-axis automatic thread rolling machine is highly valued for its affordable price, simple maintenance, and superior quality. This machine has gained a strong reputation within the industry for its ability to efficiently and effectively roll threads on various materials. Its two-axis design allows for precise and accurate threading, ensuring consistent results every time. Additionally, this machine is known for its durability and reliability, making it a long-lasting investment for any workshop or production facility. Overall, the 2-axis thread rolling machine is a popular choice among manufacturers and engineers due to its cost-effectiveness, user-friendly maintenance, and top-notch performance.

Z28-360 hot selling automatic thread rolling machine Technical Parameters

Item		parameter
thread rolling thread range	max diameter	∅100mmm
	max pitch	10mm
spindle Angle		±10°
maxmum rolling pressure		450kn
spindle RPM		Continuously variable speed
thread roller range	outer diameter	∅75/85mm
	innner diameter	∅·75mm
	max width	200mm
rolling time		0.1-99.9s
pause time		0.1-99.9s
spindle drive power		15kw
hydraulic transmission power		11kw
physcial size		215018501550mm
machine weight		3600kg

FAQ

4.Can a types of automatic thread rolling machine create threads on hardened materials?

Our company has many years of types of automatic thread rolling machine experience and expertise. Yes, a thread rolling machine can create threads on hardened materials.
The process of thread rolling involves pressing a hardened steel die onto the surface of the material, which displaces the material and forms the threads. This process is suitable for creating threads on a wide range of materials, including hardened materials such as stainless steel, titanium, and hardened steel. However, the hardness of the material may affect the speed and efficiency of the thread rolling process. It is important to use the appropriate die and machine settings for the specific material being threaded to ensure the best results.
