Z28-40 screw thread rolling machine

As a rolling tool, the thread rolling mould has strong specificity, and is applicable to various carbon steels, alloy steels and non-ferrous metals whose Hardness of rolling workpiece is not higher than HRC37, preferably lower than HRC25, elongation should be greater than 10%, and tensile strength should be less than 100Kgf/mm (square). With the increase of material hardness, the service life of rolling tools will decline sharply

Commodity name： Z28-40 screw thread rolling machine

Category:

Two-axis thread rolling machine

Email:

Phone:

Description

Screw Thread Rolling Machine is a versatile and efficient solution for producing threads across various industries. From hardware construction to automotive components, these machines have revolutionized the manufacturing process. The Two-axis thread rolling machine and Three-axis thread rolling machine cater to different production needs, offering superior precision and strength in thread formation.

Advantages of Thread Rolling

Thread rolling, performed by a Screw Thread Rolling Machine, offers multiple benefits:

High Production Rates: Enables mass production of threads quickly and efficiently.
Enhanced Tensile Strength: Work hardening during the process increases thread durability.
Superior Surface Finish: Produces smooth, uniform threads with reduced surface defects.
Material Versatility: Suitable for steel, aluminum, brass, plastic, and more.
No Material Wastage: A chip-free process ensures cost-efficient thread production.

Z28-40 automatic thread rolling machine Detailed parameter

Items		Parameters
Thread rolling thread range	diamete	φ4-φ36mm
	thread pitch	0.5-4.0mm
Spindle Angle		±6°
Maximum rolling pressure		120kn
Spindle RPM		Exchange gear 39/49/66/82rpm
Thread rolling wheel range	diameter	φ120-φ170mm
	aperture	φ54mm
	Maximum width	100mm
Spindle drive power		4.0kw
Hydraulic transmission power		2.2kw
Physical size		1450×1300×1300mm
Machine weight		1100±50kg

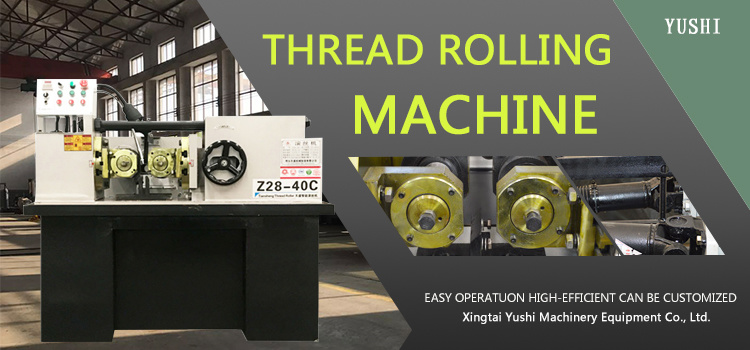

Yushi Z28-40 screw thread rolling machine

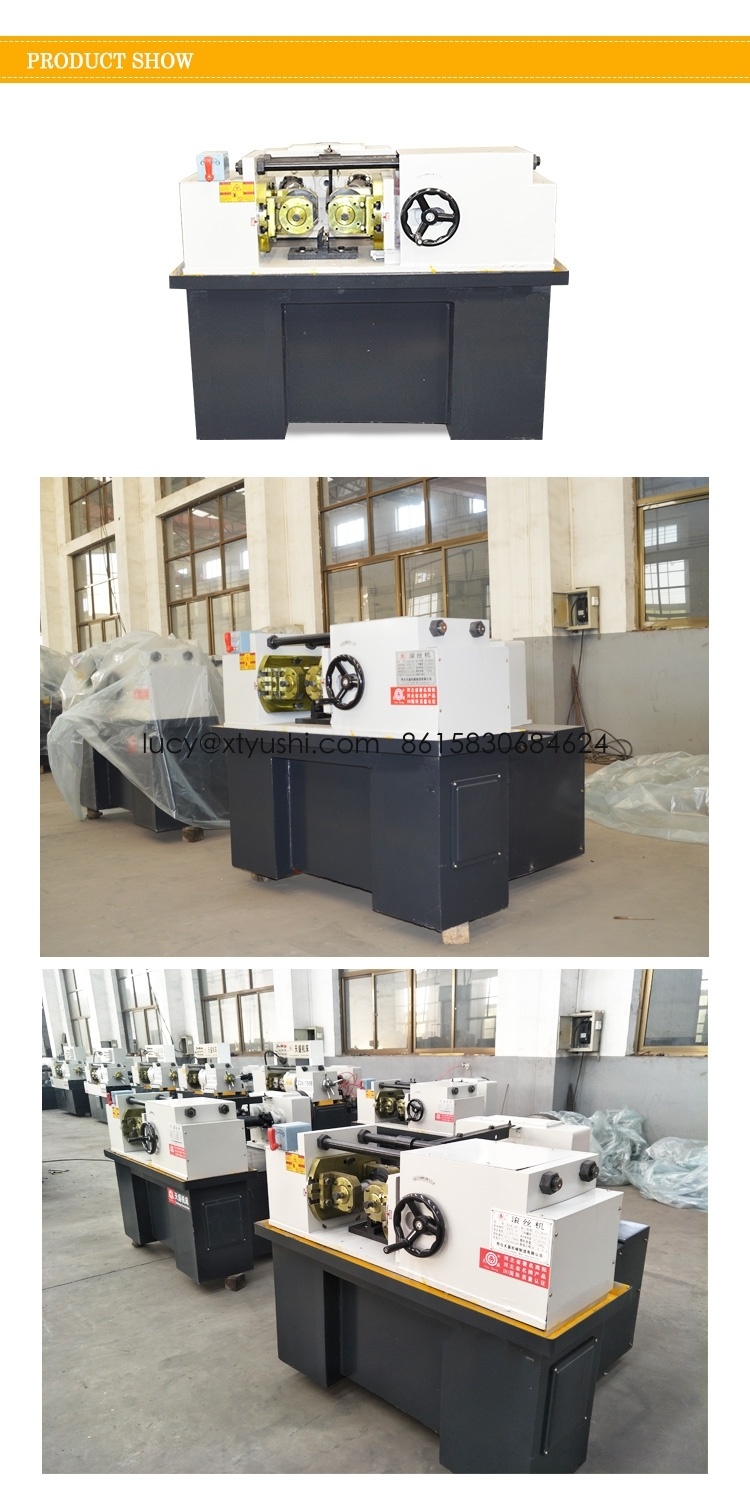

Product Show of Yushi Z28-40 screw thread rolling machine

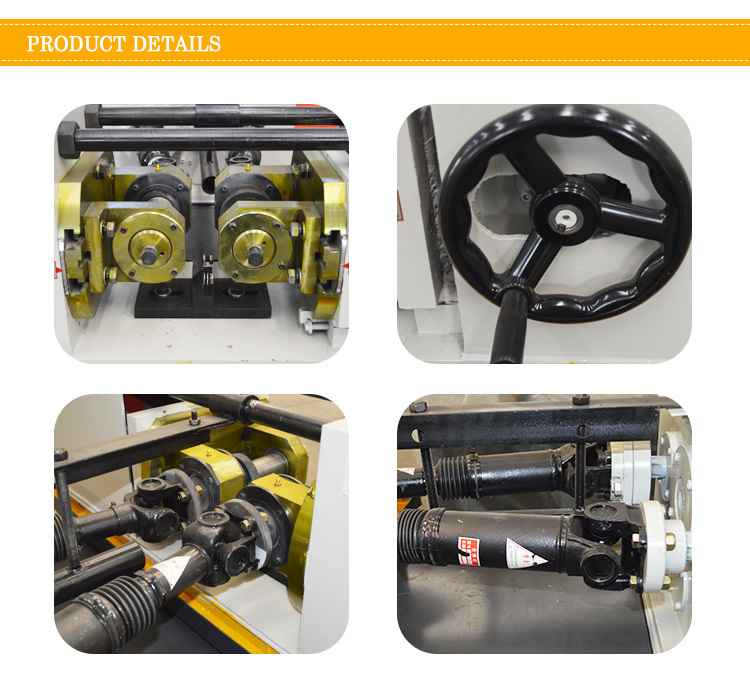

Product Details of Yushi Z28-40 screw thread rolling machine

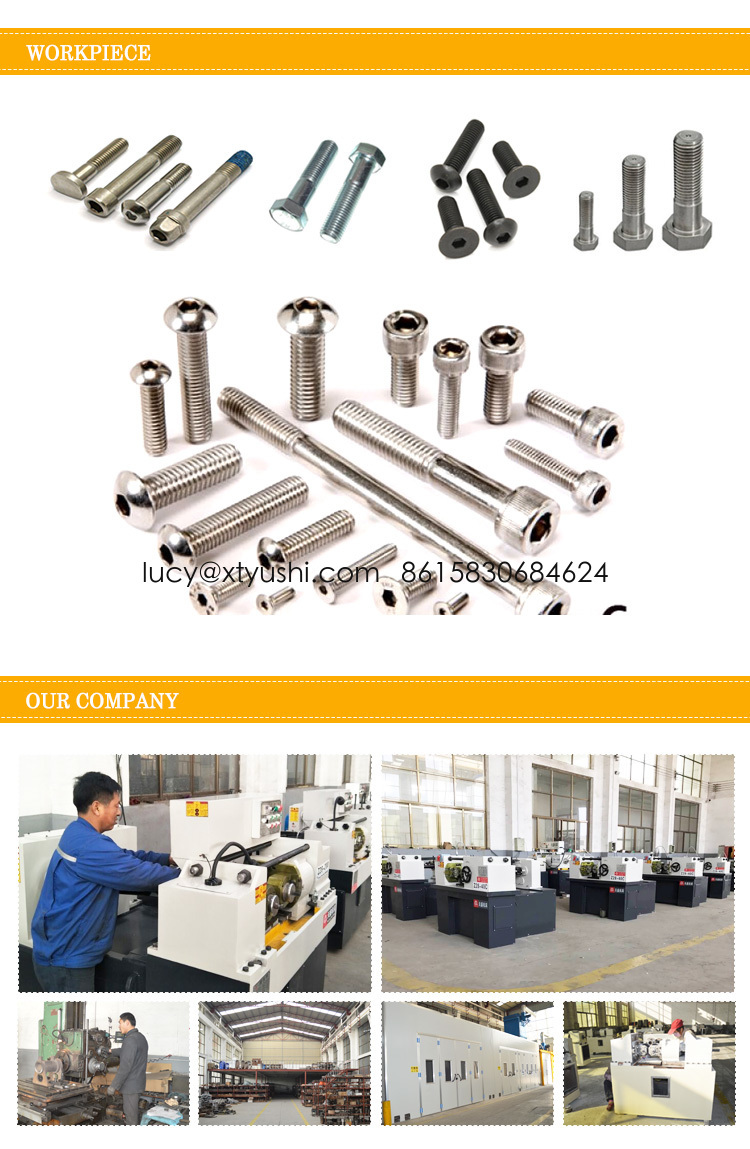

Team of Yushi Machinery

Shipping and Packing about Yushi Z28-40 screw thread rolling machine

Yushi Bank Receipt Yushi Bill of Lading Feedback of Yushi Z28-40 screw thread rolling machine

Yushi Screw Thread Rolling Machine ensures high-quality thread formation with exceptional efficiency. Our Z28-40 two-axis thread rolling machine is particularly suitable for large-scale production. All of our products support sustainable and cost-effective manufacturing practices.

Yushi independently developed a number of automatic Hydraulic Thread rolling machine . The company sent people to the research and development front line, independently developed and obtained a number of national invention patents: a fully automatic thread rolling machine process invention patent, a 3D wire molding machine patent, and a traceless clothes hanger leveling production line patent. It has more than a dozen patents including the patent for the integrated wire bending and welding machine and the patent for the control system of the graphic input wire forming machine.

Incorporating Yushi screw thread rolling machine into your production line not only boosts output but also guarantees precise, durable threads for diverse industrial applications.
