Z28-650 wholesale thread rolling machine

1 surface roughness less than turning,milling and grinding; 2. Processed products than two-axis rolling machine products processed verticality,concentricity,etc. better,higher precision; 3. Material utilization is high;productivity is doubled from cutting,and it is easy to automate;

Commodity name： Z28-650 wholesale thread rolling machine

Category:

Two-axis thread rolling machine

Email:

Phone:

Description

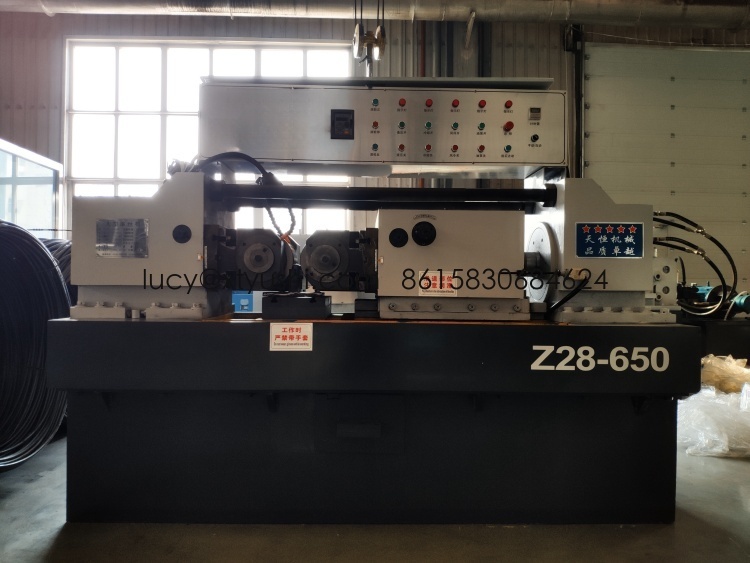

Z28-650 wholesale thread rolling machine

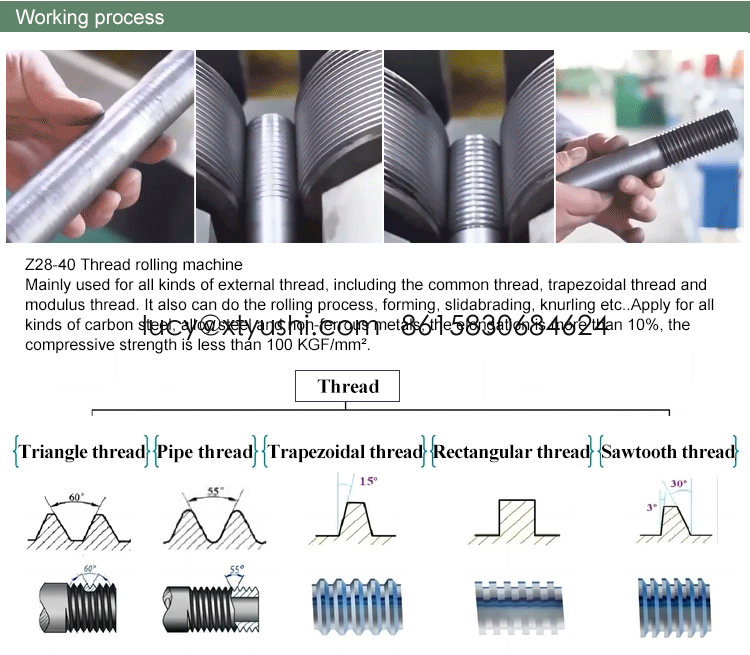

The thread rolling machine is a multi-functional cold extrusion forming machine tool. The thread rolling machine can perform thread, straight and twill rolling on the workpiece in a cold state within the rolling force range; spur gears, helical gears and helical spline gears Rolling; straightening, reducing, rolling and various forming rolling. The machine has a safe and reliable electro-hydraulic execution and control system, which allows each working cycle to be selected from three modes: manual, semi-automatic and automatic.

Thread rolling cold rolling process is an advanced non-cutting process that can effectively improve the intrinsic and surface quality of the workpiece. The radial compressive stress generated during processing can significantly improve the fatigue strength and torsional strength of the workpiece. It is a highly efficient method. , energy saving and low consumption ideal process.

Z28-650 wholesale thread rolling machine Technical Parameters

Item		parameter
thread rolling thread range	max diameter	∅120mmm
	max pitch	12mm
spindle Angle		±10°
maxmum rolling pressure		650kn
spindle RPM		Continuously variable speed
thread roller range	outer diameter	∅310mm
	innner diameter	∅75/100mm
	max width	260mm
rolling time		0.1-99.9s
pause time		0.1-99.9s
spindle drive power		18.5kw
hydraulic transmission power		11kw
physcial size		230024001700mm
machine weight		6000kg

FAQ

Can a Z28-650 wholesale thread rolling machine Create Threads with Different Tolerances?

Yes, a thread rolling machine can create threads with different tolerances. The machine can be adjusted to produce threads with different pitch, diameter, and depth, which ultimately affects the tolerance of the thread. The operator can also adjust the pressure and speed of the machine to achieve the desired tolerance. However, it is important to note that the accuracy and consistency of the thread rolling machine play a crucial role in achieving the desired tolerance. Regular maintenance and calibration of the machine are necessary to ensure consistent and accurate thread production.
