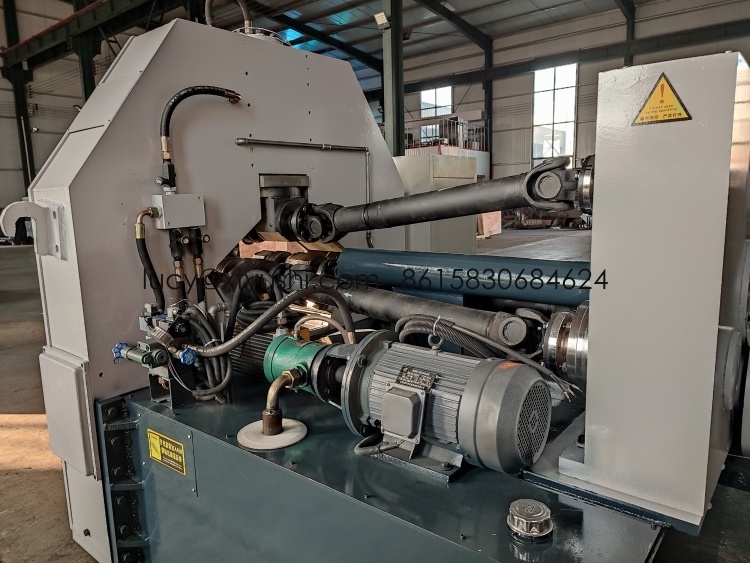

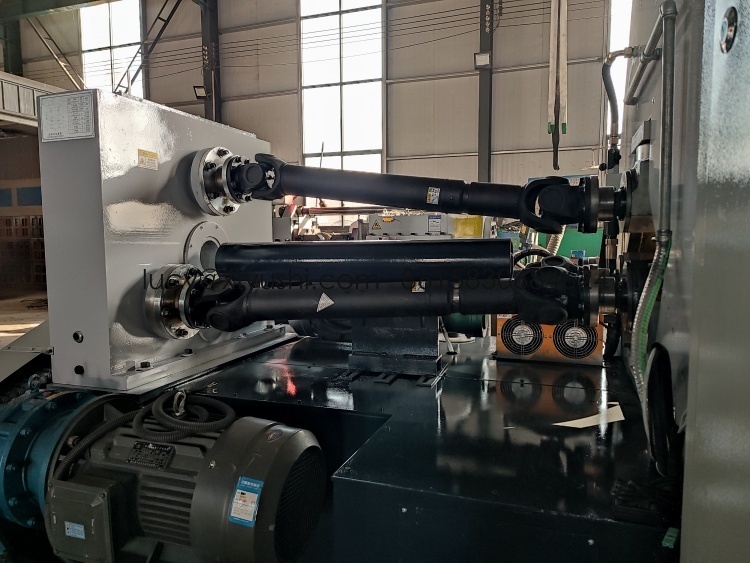

ZP28-100 three roller rolling machine manufacturer in china thread rolling machine pricelist

1 surface roughness less than turning,milling and grinding; 2. Processed products than two-axis rolling machine products processed verticality,concentricity,etc. better,higher precision; 3. Material utilization is high;productivity is doubled from cutting,and it is easy to automate;
  • Commodity name： ZP28-100 three roller rolling machine manufacturer in china thread rolling machine pricelist

Category:

Three-axis thread rolling machine

Email:

Lucy@xtyushi.com

Phone:

8615830684624

Get Quote
Also Like
  • Description

  • ZP28-100 three roller rolling machine manufacturer in china thread rolling machine pricelist

    2024 New Model - Z28 series three roller rolling machine  Advantages
    1. Taiwan(China) joint venture hydraulic system
    2. 4V motor to adjust stroke
    3. One-piece cast body
    4. Spindle stepless speed change
    5. CE, ISO9001, SGS certificate.

    1. three roller rolling machine  Application:
    Long screws, ACME screws, ball screws, mechanical parts, tools and automobile/motorcycle parts.
    2. Powerful rolling:
    Sufficient hydraulic pressure is the basis for ensuring the service life of the machine. The guide rail feed is driven by a hydraulic device, with accurate positioning, strong power, and no deformation.
    3. Feeding method
    Both through-feed and plunge-feed (plunge feed) are available, and rolling time and rolling length can be adjusted by sensors. The feed movement is smooth, and the square slide on the ground avoids beating, vibration and wear.
    4. Transmission method
    Steplessly adjustable, heat-treated thread-ground worm mates perfectly and smoothly with the phosphor bronze worm gear.
    5. Integrated molding and complete machine delivery:
    The thick steel body is sturdy and durable, and the heat-treated high-strength cast iron frame is durable.

    ZP28-100 three roller rolling machine manufacturer specifucation sheet

    Item parameter
    thread rolling thread range max diameter  ∅100mmm
    max pitch  10mm
    spindle Angle ±6°
    maxmum rolling pressure 450kn
    spindle RPM Continuously variable speed
    thread roller range outer diameter  ∅220mm
    innner diameter  ∅·75mm
    max width  150mm
    rolling time  0.1-99.9s
    pause time  0.1-99.9s
    spindle drive power 15kw
    hydraulic transmission power 5.5kw
    physcial size 2200*1850*2100mm
    machine weight 4800kg





    STANDARD EQUIPMENT of ZP28-100 three roller rolling machine manufacturer in china thread rolling machine pricelist

    1.Control panel (with stepless variable speed for rolling die spindles) that provides easier operation and smooth rolling for different kinds of thread/gear forms and materials

    2. Powerful hydraulic system and easy adjustment for rolling different kinds of jobs

    3. Quick thread pitch matching device4. Working area light



    1. Working lamp

    1 set

    2. Tools with tool box

    1 set

    3. Instruction manual

    1 copy
